RoHS Ompliant Custom Thickness And Shape Extremely Soft Thermal Pads For New Energy Charging Box

RoHS Ompliant Custom Thickness And Shape Extremely Soft Thermal Pads For New Energy Charging Box
RoHS Ompliant Custom Thickness And Shape Extremely Soft Thermal Pads For New Energy Charging Box
RoHS Ompliant Custom Thickness And Shape Extremely Soft Thermal Pads For New Energy Charging Box RoHS Ompliant Custom Thickness And Shape Extremely Soft Thermal Pads For New Energy Charging Box RoHS Ompliant Custom Thickness And Shape Extremely Soft Thermal Pads For New Energy Charging Box

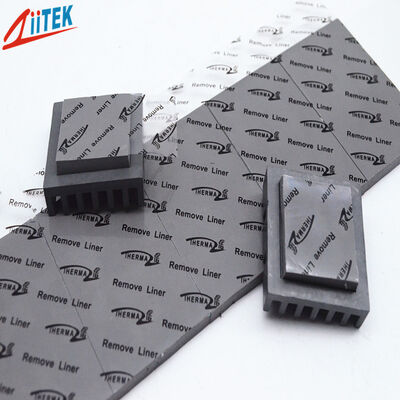

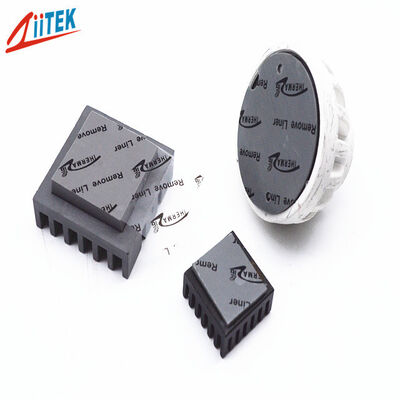

Gambar besar :  RoHS Ompliant Custom Thickness And Shape Extremely Soft Thermal Pads For New Energy Charging Box

Detail produk:
Tempat asal: Cina
Nama merek: ZIITEK
Sertifikasi: UL and RoHs
Nomor model: TIF100-18-11U
Dokumen: TIF100-18-11U_Data Sheet .pdf
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1000 buah
Harga: Dapat dinegosiasikan
Kemasan rincian: 1000 buah/tas
Waktu pengiriman: 3-5 hari kerja
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 10000/hari
Kontak

RoHS Ompliant Custom Thickness And Shape Extremely Soft Thermal Pads For New Energy Charging Box

Deskripsi
Nama produk: Ketebalan Dan Bentuk Kustom Sesuai RoHS Bantalan Termal Sangat Lembut Untuk Kotak Pengisian Energi B Ketebalan: Tersedia Dalam Berbagai Ketebalan
Kata kunci: Bantalan termal Kekerasan: 65/27 Pantai 00
Konstruksi: Elastomer silikon berisi keramik Kepadatan: 2,5 g/cm³
Aplikasi: Kotak Pengisian Energi Baru Konduktivitas termal: 1,8W/mK

RoHS Compliant Custom Thickness And Shape Extremely Soft Thermal Pads For New Energy Charging Box
Product Overview

The TIF®100-18-11U Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies, such as large tolerances, uneven surfaces, and the susceptibility of delicate components to mechanical damage.

Key Features
  • Good thermal conductivity: 1.8 W/mK
  • Ultra-soft and highly conformable
  • Self-adhesive without the need for additional surface adhesive
  • Good insulation performance
Applications
  • Cooling components to the chassis of frame
  • High speed mass storage drives
  • Heat Sinking Housing at LED-lit BLU in LCD
  • Micro heat pipe thermal solutions
  • Notebook computers
  • Power supply units
  • Heat pipe thermal solutions
  • Memory Modules
  • Home appliance industry
  • Power modules
  • Wearable devices
  • Solar photovoltaic panels
  • LED lighting fixtures
Technical Specifications of TIF®100-18-11U Series
Property Value Test Method
Color Dark Gray Visual
Construction Ceramic filled silicone elastomer -
Density (g/cm³) 2.5 ASTM D792
Thickness Range (inch/mm) 0.010~0.020 | 0.030~0.200
0.25~0.50 | 0.75~5.00		 ASTM D374
Hardness (Shore 00) 65 | 27 ASTM 2240
Recommend Operating Temperature (℃) -40 to 200℃ -
Breakdown Voltage (V/mm) ≥ 5500 ASTM D149
Dielectric Constant @1Mhz 4.5 ASTM D150
Volume Resistivity (Ohm-meter) ≥1.0×10¹² ASTM D257
Thermal Conductivity (W/m-K) 1.8 ASTM D5470
ISO22007
Fire rating V-0 UL 94 (E331100)
Product Specifications

Standard Thickness: 0.010" (0.25 mm)～ 0.200" (5.00 mm) with increments of 0.010" (0.25 mm)

Standard Size: 16"×16" (406 mm ×406 mm)

Component Codes

Reinforcement Fabric: FG (Fiberglass)

Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)

Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)

The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

Packaging & Lead Time

Packaging Details:

  • PET film or foam for protection
  • Paper card to separate each layer
  • Export carton inside and outside
  • Customized packaging available to meet customer requirements

Lead Time:

Quantity: 5,000 pieces

Estimated Time: To be negotiated

Company Profile

Dongguan Ziitek Electronic Material and Technology Ltd. (ZIITEK) has been deeply involved in the field of heat conducting materials for many years, and is a high-tech enterprise integrating R&D, production and sales. Headquartered in Dongguan, with four production bases in Kunshan, Taiwan Province and Viet Nam, the global delivery capacity is stable and reliable.

Main products include thermal conductive silica pads, thermal conductive graphite sheets, thermal conductive insulation materials, PCM phase change materials, thermal conductive plastics, thermal conductive silicone grease/paste, thermal conductive gel, thermal conductive epoxy potting glue, thermal conductive silicone adhesive, silicone foam, and silicon-free thermal pads. Our core heating plate products are widely recognized by the market.

Our products have passed ISO9001 and IATF16949 certification, and meet RoHS/UL standards, and are widely used in new energy, 5G, data center, automotive electronics and other fields.

Certifications
  • ISO9001:2015
  • ISO14001:2004
  • IATF16949:2016
  • IECQ QC 080000:2017
  • UL Certified
  • Independent R&D team
How to Place an Order
Q: How do I place an order?

A:

  1. Click the "Send messages" button to continue with the process
  2. Fill out the message form by entering a subject line and message to us
  3. Include any questions you might have about the products as well as your purchase requests
  4. Click the "Send" button when you are finished to complete the process
  5. We will reply to you as soon as possible via Email or online
