Flexible Thermal Gap Filler Reinforced With Fiberglass For Thermal Management In LED TV And LED Lit Lamps

Flexible Thermal Gap Filler Reinforced With Fiberglass For Thermal Management In LED TV And LED Lit Lamps
Flexible Thermal Gap Filler Reinforced With Fiberglass For Thermal Management In LED TV And LED Lit Lamps
Flexible Thermal Gap Filler Reinforced With Fiberglass For Thermal Management In LED TV And LED Lit Lamps Flexible Thermal Gap Filler Reinforced With Fiberglass For Thermal Management In LED TV And LED Lit Lamps Flexible Thermal Gap Filler Reinforced With Fiberglass For Thermal Management In LED TV And LED Lit Lamps

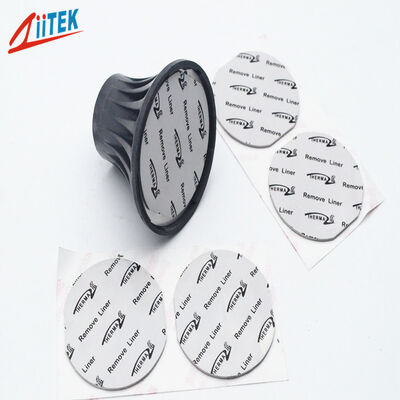

Gambar besar :  Flexible Thermal Gap Filler Reinforced With Fiberglass For Thermal Management In LED TV And LED Lit Lamps

Detail produk:
Tempat asal: Cina
Nama merek: ZIITEK
Sertifikasi: UL and RoHs
Nomor model: TIF100-18-02S
Dokumen: TIF100-18-02S_Data Sheet.pdf
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1000 buah
Harga: Dapat dinegosiasikan
Kemasan rincian: 1000 buah/tas
Waktu pengiriman: 3-7 hari kerja
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 10000/hari
Kontak

Flexible Thermal Gap Filler Reinforced With Fiberglass For Thermal Management In LED TV And LED Lit Lamps

Deskripsi
Nama produk: Pengisi Celah Termal Fleksibel Diperkuat Dengan Fiberglass Untuk Manajemen Termal Pada TV LED Dan La Kepadatan: 2,65 g/cm³
Fitur: Kinerja isolasi yang baik Ketebalan: 0,25mm~5,00mm
Aplikasi: Untuk Manajemen Termal Pada TV LED Dan Lampu Menyala LED Warna: putih abu-abu
Kata kunci: Pengisi celah termal Konduktivitas termal: 1,8W/mK

Flexible Thermal Gap Filler Reinforced With Fiberglass For Thermal Management In LED TV And LED Lit Lamps
Product Overview

TIF®100-18-02s Series is a well-balanced, general-purpose thermal pad offering good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.

Key Features
  • Good thermal conductivity: 1.8W/mK
  • Moldability for complex parts
  • Soft and compressible for low stress applications
  • Naturally tacky, requiring no additional adhesive coating
Applications
  • IGBTs
  • LED lighting heat sinking
  • RDRAM memory modules
  • Cooling components to chassis or frame
  • High speed mass storage drives
  • Heat sinking housing at LED-lit BLU in LCD
  • LED TV and LED-lit lamps
  • Micro heat pipe thermal solutions
  • Automotive engine control units
  • Telecommunication hardware
  • Handheld portable electronics
  • Semiconductor automated test equipment (ATE)
Typical Properties of TIF®100-18-02S Series
Property Value Test Method
Color Gray white Visual
Construction Ceramic filled silicone elastomer ******
Density (g/cm³) 2.65 ASTM D792
Thickness Range (inch/mm) 0.010~0.020 | 0.030~0.200
0.25~0.50 | 0.75~5.00		 ASTM D374
Hardness (Shore 00) 65 | 45 ASTM 2240
Recommend Operating Temperature (℃) -40 to 200℃ ******
Breakdown Voltage (V/mm) ≥ 5500 ASTM D149
Dielectric Constant @1Mhz 4.5 ASTM D150
Volume Resistivity (Ohm-meter) ≥1.0×10¹² ASTM D257
Thermal Conductivity (W/m-K) 1.8
1.8		 ASTM D5470
ISO22007
Fire rating V-0 UL 94 (E331100)
Product Specifications

Standard Thickness: 0.010" (0.25 mm) – 0.200" (5.00 mm) with increments of 0.010" (0.25 mm).

Standard Size: 16"×16" (406 mm × 406 mm).

Component Codes

Reinforcement Fabric: FG (Fiberglass)

Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)

Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)

The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

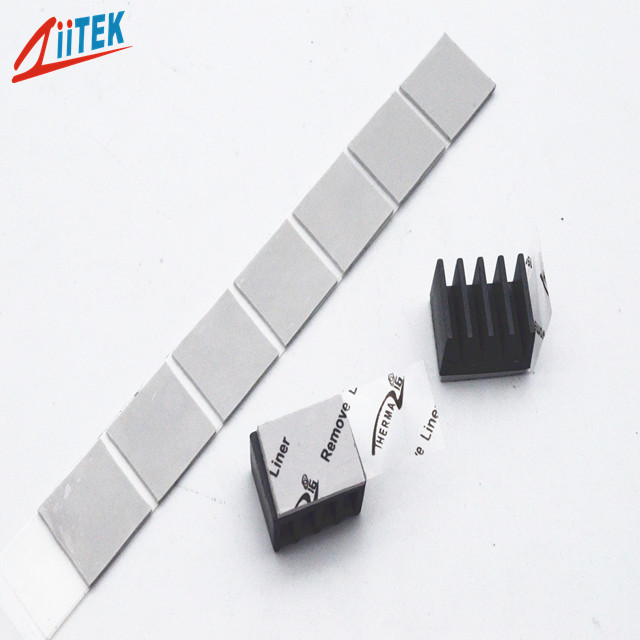

TIF®100-18-02S Series Thermal Gap Filler product image showing material texture and application
Why Choose Us?
  • Our value message: "Do it right the First time, total quality control"
  • Core competencies in thermal conductive interface materials
  • Competitive advantage products
  • Confidentiality agreement and Business Secret Contract
  • Free sample offer
  • Quality assurance contract
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer in China.
How long is your delivery time?
Generally 3-7 work days if goods are in stock, or 7-10 work days if not in stock, depending on quantity.
Do you provide samples? Is it free or extra cost?
Yes, we offer samples free of charge.
