Low Thermal Impedance Ultra Soft Thermal Pad For 5G, Aerospace, AI, Electric Vehicle

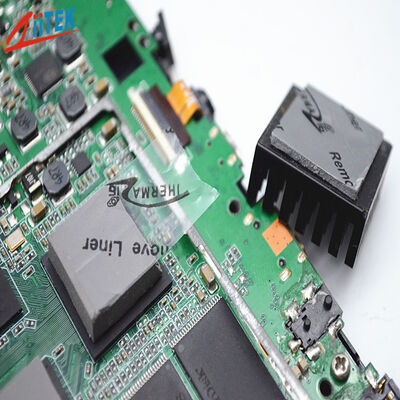

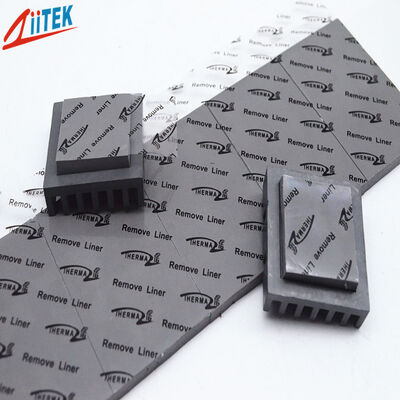

Gambar besar : Low Thermal Impedance Ultra Soft Thermal Pad For 5G, Aerospace, AI, Electric Vehicle

Detail produk:

Tempat asal:	Cina
Nama merek:	ZIITEK
Sertifikasi:	UL and RoHs
Nomor model:	TIF100-50-11ES

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1000 buah
Harga:	Dapat dinegosiasikan
Kemasan rincian:	1000 buah/tas
Waktu pengiriman:	3-5 hari kerja
Syarat-syarat pembayaran:	T/T
Menyediakan kemampuan:	100000pcs/hari

Kontak

Detil Deskripsi produk

Nama produk:	Bantalan Termal Ultra Lembut Impedansi Termal Rendah Untuk 5G, Aerospace, AI, Kendaraan Listrik	Ketebalan:	0,010"(0,25mm)~0,200"(5,0mm)
Konduktivitas termal:	5,0W/m-K	Kata kunci:	Bantalan Termal Ultra Lembut
Kekerasan:	10 pantai 00	Kepadatan:	3.3g/cm³
Warna:	abu-abu gelap	Suhu Pengoperasian yang Disarankan:	-40 hingga 200 ℃
Aplikasi:	5G, Dirgantara, AI, Kendaraan Listrik

Low Thermal Impedance Ultra Soft Thermal Pad For 5G, Aerospace, AI, Electric Vehicle

The TIF^®100-50-11ES Series is a thermal pad specifically designed to tackle the high level cooling challenges and environments sensitive to extreme mechanical stress. It combines higt thermal conductivity with a near-fluid ultimate softness, ensuring perfect filing of the contact interface even under ultra-low mounting pressure, completely eliminating air thermal resistance, and providing superior thermal solutions and physical protection for the most precise and higt heat flux electronic components.

Features

> Good thermal conductive: 5.0W/mK
> Moldability for complex parts
> Broad range of hardnesses available
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized

Applications

> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

> Home appliance industry
> CPU
> Display card
> Mainboard/mother board
> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
> AI Processors AI Servers

Typical Properties of TIF^®100-50-11ES Series
Property	Value		Test method
Color	Dark Gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.3		ASTM D792
Thickness Range(inch/mm)	0.020~0.030	0.040~0.200	ASTM D374
	(0.50~0.75)	(1.0~5.0)
Hardness	10 Shore 00	10 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant @ 1MHz	7.0 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	5.0W/m-K		ASTM D5470
	5.0W/m-K		ISO22007

Product Specifications
Standard Thickness: 0.020" (0.50 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mm×406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is availablein custom shapes and various forms.
For other thicknesses or more information, please contact us.
