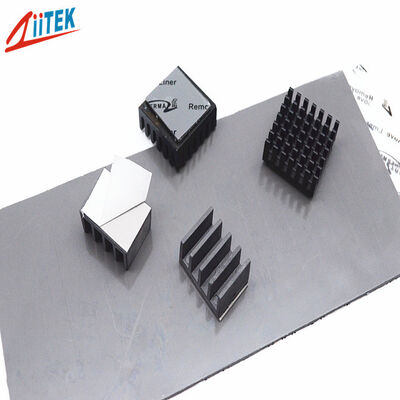

Good Thermal Conductivity Silicone-Based Thermal Gap Pad For Electronic Components 5G Aerospace AI

Good Thermal Conductivity Silicone-Based Thermal Gap Pad For Electronic Components 5G Aerospace AI
Good Thermal Conductivity Silicone-Based Thermal Gap Pad For Electronic Components 5G Aerospace AI
video play

Gambar besar :  Good Thermal Conductivity Silicone-Based Thermal Gap Pad For Electronic Components 5G Aerospace AI

Detail produk:
Tempat asal: Cina
Nama merek: ZIITEK
Sertifikasi: UL and RoHs
Nomor model: TIF100-40-11AS
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1000 buah
Harga: Dapat dinegosiasikan
Kemasan rincian: 1000 buah/tas
Waktu pengiriman: 3-5 hari kerja
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 100000pcs/hari
Kontak
Detil Deskripsi produk
Nama produk: Bantalan Celah Termal Berbasis Silikon Konduktivitas Termal Yang Baik Untuk Komponen Elektronik 5G A Aplikasi: Komponen Elektronik 5G Aerospace AI
Ketebalan: 0,010"(0,25mm)~0,200"(5,0mm) Konduktivitas termal: 4,0W/mK
Kata kunci: bantalan celah termal Kekerasan: 65/20 Pantai 00
Kepadatan: 3,2g/cm³ Warna: abu-abu gelap
Suhu Pengoperasian yang Disarankan: -40 hingga 200 ℃

Good Thermal Conductivity Silicone-Based Thermal Gap Pad For Electronic Components 5G Aerospace AI



The TIF®100-40-11US Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with exceptional gel-level softness,achieving a perfectly low-stress fit.It is suitable for addressing issues such as large tolerances, uneven surfaces, and the susceptibility of precision components to mechanical damage in high-precision assemblies.


Features


> Good thermal conductive: 4.0W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses




Applications


> Cpu heat sinking
> High speed mass storage drives
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

> Home appliance industry
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules





Typical Properties of TIF®100-40-11US Series
Property Value Test method
Color Dark Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.2 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.0)
Hardness 65 Shore 00 20 Shore 00 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant @ 1MHz 7.0 MHz ASTM D150
Volume Resistivity ＞1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 4.0W/m-K ASTM D5470
4.0W/m-K ISO22007



Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm)
with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mm×406 mm)


Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).


The TIF® series is availablein custom shapes and various forms.
For other thicknesses or more information, please contact us.
