Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Nama produk: | Konduktivitas Termal Yang Baik Pasta Termal Gemuk Termal Untuk Komponen Elektronik IC, CPU, MOS | Warna: | Abu-abu |
|---|---|---|---|
| Konstruksi & Komposisi: | Minyak oksida logam/silikon | Kepadatan: | 2,3g/cm³ |
| Konduktivitas Termal: | 5.0 w/mk | Impedansi termal((%22C-in²/W) @30 psi): | 0,015 |
| Kata kunci: | Pasta Termal | Suhu Operasi yang Direkomendasikan: | -40 ~ 200 ℃ |

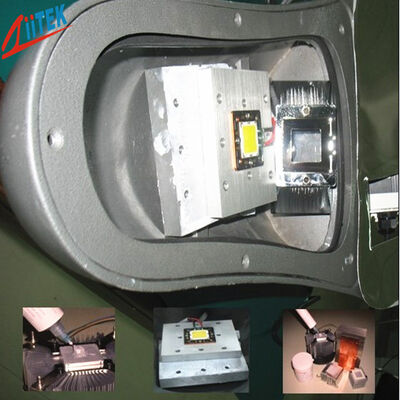

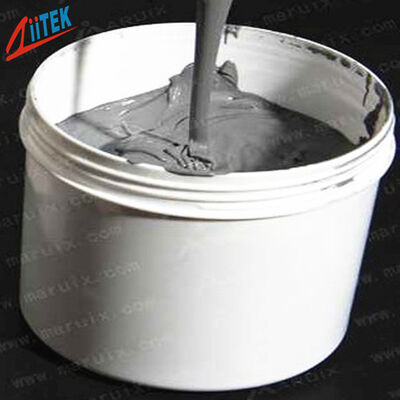

Good Thermal Conductivity Thermal Grease Thermal Paste For Electronic Components IC, CPU, MOS
TIG®780-56 Series is an environmentally friendly silicone based thermal paste designed to efficiently solve overheating problems in electronic devices and improve long-term reliability, TIG®780-50HP is a paste like material that can fully wet the surfaces of electronic components and heat sinks. It acts to fill the gaps between electronic components and heat sinks, eliminate air, and significantly improve heat dissipation eficiency (better than traditional thermal pads or ordinary silicone grease), thereby forming an extremely low thermal resistance interface and achieving excellent thermal conductivity efficiency.
Features
> High thermal conductivity
> Excellent low thermal resistance
> Good electrical insulation
> Excellent long-term stability
> Non toxic, environmentally friendly,and safe, meeting RoHS requirements
Applications lnclude
> Al server
> Industrial equipment
> Medical electronic devices
> LED TV,LED lighting fixtures
> Automotive Electronics (New Energy and Intelligence)
> High end consumer electronics and portable devices
| Typical Properties of TIG®780-50HP Series | ||
| Property | Value | Test Method |
| Color | Gray | Visual |
| Construction &Compostion | Metal oxide / Silicone oil | Ziitek Test Method |
| Density | 2.30 g/cm³ | ASTM D792 |
| Thermal Conductivity | 5.0W/mK | ASTM D5470 |
| Bond line Thickness (mm) | 0.008 | ASTM D374 |
| Thermal Impedance (℃·in²/W) @30 psi | 0.015 | ASTM D5470 |
| Thermal Impedance (℃·in²/W) @50 psi | 0.012 | ASTM D5470 |
| Recommended Operating Temp | -40℃ to 200℃ | ***** |
| Viscosity(mPa.s) | 200000 | GB/T 10247 |
Packaging Specifications
Packaging specifications: 0.5kg,1kg,2kg;
If you have any other specification requirements, please contact our company.
![]()
