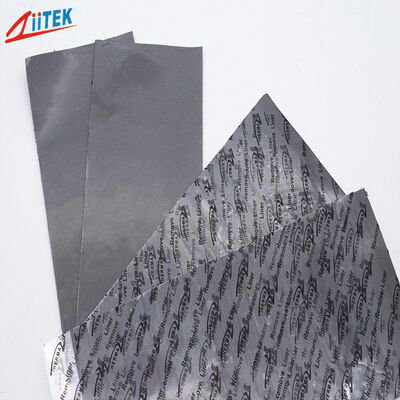

Good Heat Dissipation 7.5W Silicone Thermal Pad For AI Processors AI Servers
The TIF®700PUS Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies, such as large tolerances, uneven surfaces, and the susceptibility of delicate components to mechanical damage.
Features
> Excellent thermal conductivity:7.5 W/mK
> Super soft and highly compliant
> Self-adhesive without the need for additional surface adhesives
> High insulation performance
Applications
> Al Servers
> Semiconductor Packaging
> Low-Altitude Aircraft
> Optical Communication Products
> 5G Base Stations
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
| Typical Properties of TIF®700PUS Series |
| Property |
Value |
Test method |
| Color |
Gray |
Visual |
| Construction & Compostion |
Ceramic filled silicone elastomer |
****** |
| Density(g/cm³) |
3.2 |
ASTM D792 |
| Thickness Range(inch/mm) |
0.020~0.030 |
0.040~0.200 |
ASTM D374 |
| 0.50~0.75 |
1.0~5.0 |
| Hardness |
70 Shore 00 |
20 Shore 00 |
ASTM 2240 |
| Recommended Operating Temperature |
-40 to 200℃ |
****** |
| Breakdown Voltage(V/mm) |
≥5500 |
ASTM D149 |
| Dielectric Constant @1MHz |
4.5 |
ASTM D150 |
| Volume Resistivity |
＞3.5 X1012 Ohm-meter |
ASTM D257 |
| Flame rating |
V-0 |
UL 94 (E331100) |
| Thermal conductivity |
7.5 W/m-K |
ASTM D5470 |
| 7.5 W/m-K |
ISO22007 |
Product Specifications
Standard Thickness:0.020" (0.50 mm)~0.200" (5.00 mm) with increments of 0.01" (0.25 mm)
Standard Size: 16"X 16" (406mmX406 mm)
Component Codes:
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
