Multiple Thickness Hardness Factory Thermal Silicone Pad For Electric Products

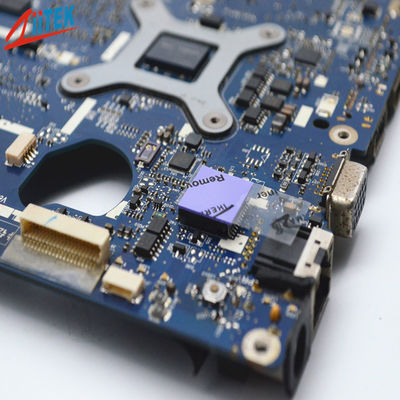

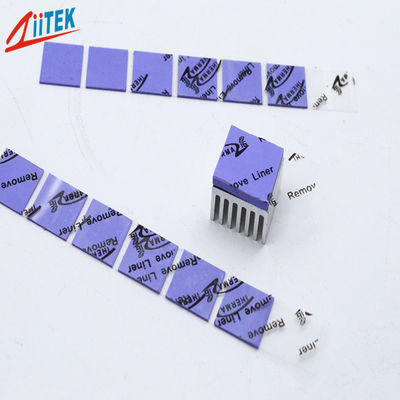

Gambar besar : Multiple Thickness Hardness Factory Thermal Silicone Pad For Electric Products

Detail produk:

Tempat asal:	Tiongkok
Nama merek:	ZIITEK
Sertifikasi:	UL and RoHs
Nomor model:	TIF100-15-16S

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1000 buah
Harga:	Dapat dinegosiasikan
Kemasan rincian:	1000pcs/tas
Waktu pengiriman:	3-5 hari
Menyediakan kemampuan:	100000pcs/hari

Kontak

Detil Deskripsi produk

Nama Produk:	Bantalan Silikon Termal Pabrik Kekerasan Ketebalan Berganda Untuk Produk Listrik	Warna:	ungu
Aplikasi:	Pembuangan Panas Produk Listrik	Konduktivitas Termal:	1,5 W/mK
Konstanta dielektrik @1MHz:	4.0	Kekerasan:	45 SHORE00
Kepadatan (g/cm³）:	2.2	Kata kunci:	Silicone Thermal Pad

Multiple Thickness Hardness Factory Thermal Silicone Pad For Electric Products

Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

The TIF^®100-15-16S Series a well-balanced,general-purpose thermal pad. It offers excellent thermal conductivity and moderate hardness. This balanced design provides both good surface conformity and excellent ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between cost and performance.

Features:

> Good thermal conductivity: 1.5W/mK
>  Good softness and fillability
>  Self-adhesive without the need for additional surface adhesives
>  Good insulation performance

Applications

> Home appliance industry
> Power module
> Wearable device
> Solar photovoltaic panel
> LED lighting fixtures

Typical Properties of TIF^®100-15-16S Series
Property	Value		Test method
Color	Purple		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	2.2		ASTM D792
Thickness Range(inch/mm)	0.010~0.020 (0.25~0.50)	0.030~0.200 (0.75~5.0)	ASTM D374
Hardness	65 Shore 00	45 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	4.0 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	1.5W/m-K		ASTM D5470
	1.5W/m-K		ISO22007

Product Specifications

Standard Thickness: 0.010"(0.25 mm)-0.20" (5.00 mm) with increments of 0.010 inch (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm)

Component Codes:

Reinforcement Fabric: FG (Fiberglass).

Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.

For other thicknesses or more information, please contact us.
