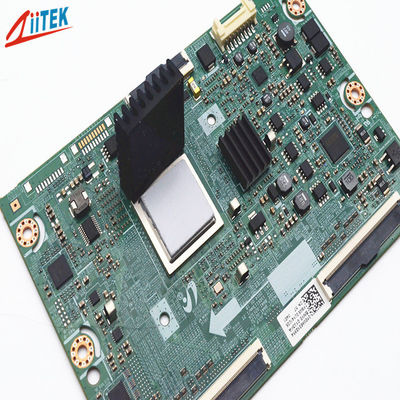

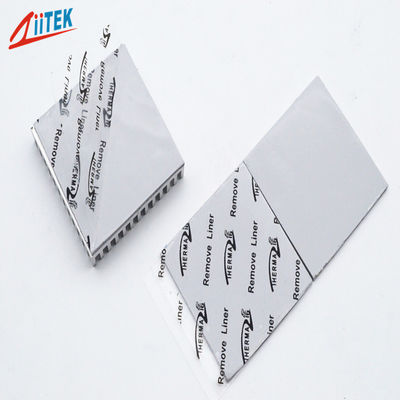

Multiple Thickness Factory Thermal Pad Thermally Conductive Silicone Pad For Electric Products

Multiple Thickness Factory Thermal Pad Thermally Conductive Silicone Pad For Electric Products
Multiple Thickness Factory Thermal Pad Thermally Conductive Silicone Pad For Electric Products
video play

Gambar besar :  Multiple Thickness Factory Thermal Pad Thermally Conductive Silicone Pad For Electric Products

Detail produk:
Tempat asal: CINA
Nama merek: ZIITEK
Sertifikasi: UL and RoHs
Nomor model: Seri TIF100-10UF
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1000 pcs
Harga: Dapat dinegosiasikan
Kemasan rincian: 1000pcs/tas
Waktu pengiriman: 3-5 hari kerja
Menyediakan kemampuan: 100000pcs/hari
Kontak
Detil Deskripsi produk
Nama Produk: Beberapa Ketebalan Pabrik Bantalan Termal Bantalan Silikon Konduktif Termal Untuk Produk Listrik Kekerasan: 75 Pantai 00
Kata kunci: Pad termal Konduktivitas termal: 1,5W/mK
Ketebalan: 0,020 "(0,5mm) ~ 0,200" (5.0mm) Warna: Abu-abu
Suhu penggunaan terus menerus: -45 hingga 200℃ Mencicipi: Sampel gratis
Aplikasi: Pembuangan Panas Produk Listrik

Multiple Thickness Factory Thermal Pad Thermally Conductive Silicone Pad For Electric Products



The TIF®100-10UF Series is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.


Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> RoHS complian

> UL recognized

> Fiberglass reinforced for puncture, shear and tear resistance
> Easy release construction


Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

> Memory Modules
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling

Typical Properties of TIF®100-10UF Series
Property Value Test method
Color Gray ******
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range 0.020"(0.5mm)~0.200"(0.50mm) ASTM D374
Specific Gravity 2.2g/cc ASTM D297
Hardness 75 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage > 5500 VAC ASTM D149
Dielectric Constant 3.9 MHz ASTM D150
Volume Resistivity 1.0 X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Outgassing(TML) 0.35% ASTM E595
Thermal conductivity 1.5 W/m-K ASTM D5470



Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)

Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.



Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.

Request adhesive on double side with "A2" suffix.



Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.

Multiple Thickness Factory Thermal Pad Thermally Conductive Silicone Pad For Electric Products 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Company profile



Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!



Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL



Independent R&D team



Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.



Multiple Thickness Factory Thermal Pad Thermally Conductive Silicone Pad For Electric Products 1
