Custom Size Photovoltaic Thermal Pad 1-15W 0.5mm~5.0mm Silicone Themals Conductive Pads For Led Laptop GPU Ssd Cooling

Cina Dongguan Ziitek Electronic Materials & Technology Ltd. Sertifikasi
Cina Dongguan Ziitek Electronic Materials & Technology Ltd. Sertifikasi
Thermal Conductive Pad terlihat dan bekerja dengan sangat baik. Kami tidak membutuhkan Thermal Conductive Pad lainnya sekarang!

—— Peter Goolsby

Saya telah bekerja sama dengan Ziitek selama 2 tahun, mereka menyediakan bahan konduktif termal berkualitas tinggi, dan pengiriman tepat waktu, merekomendasikan bahan perubahan fasa mereka

—— Antonello Sau

Kualitas yang baik, pelayanan yang baik. Tim Anda selalu memberi kami bantuan dan penyelesaian, berharap kami akan menjadi mitra yang baik sepanjang waktu!

—— Chris Rogers

I 'm Online Chat Now

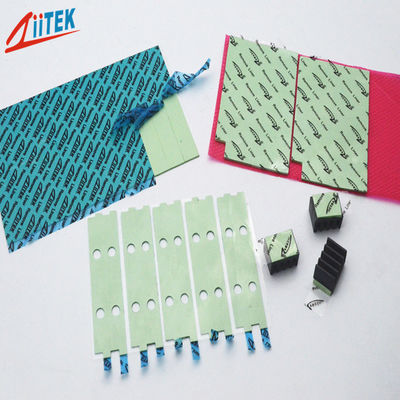

Custom Size Photovoltaic Thermal Pad 1-15W 0.5mm~5.0mm Silicone Themals Conductive Pads For Led Laptop GPU Ssd Cooling

Custom Size Photovoltaic Thermal Pad 1-15W 0.5mm~5.0mm Silicone Themals Conductive Pads For Led Laptop GPU Ssd Cooling

Gambar besar :  Custom Size Photovoltaic Thermal Pad 1-15W 0.5mm~5.0mm Silicone Themals Conductive Pads For Led Laptop GPU Ssd Cooling

Detail produk:
Tempat asal: CINA
Nama merek: ZIITEK
Sertifikasi: UL and RoHs
Nomor model: Seri TIF100-07U
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1000 pcs
Harga: Dapat dinegosiasikan
Kemasan rincian: 1000pcs/tas
Waktu pengiriman: 3-5 hari kerja
Menyediakan kemampuan: 100000pcs/hari
Detil Deskripsi produk
Nama Produk: Bantalan Termal Fotovoltaik Ukuran Khusus 1-15W 0.5Mm ~ 5.0Mm Bantalan Konduktif Silikon untuk Lapto Kata kunci: Pad termal
Konduktivitas termal: 1,5W/mK Warna: hijau
Ketebalan: 0,020 "(0,5mm) ~ 0,200" (5.0mm) Kekerasan: 27 pantai 00
Suhu penggunaan terus menerus: -45 hingga 200℃ Mencicipi: Sampel gratis
Aplikasi: Pendinginan SSD GPU Laptop Led Fotovoltaik

Custom Size Photovoltaic Thermal Pad 1-15W 0.5mm~5.0mm Silicone Themals Conductive Pads For Led Laptop GPU Ssd Cooling



The TIF®100-07U Series use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.


Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized


Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> LED Power Supply
> LED Controller
> LED Ceilinglamp
> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator



Typical Properties of TIF®100-07U Series
Property Value Test method
Color Green ******
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range 0.020"(0.5mm)~0.200"(0.50mm) ASTM D374
Specific Gravity 2.2g/cc ASTM D297
Hardness 27 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage > 5500 VAC ASTM D149
Dielectric Constant 3.5 MHz ASTM D150
Volume Resistivity 1.0 X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Outgassing(TML) 0.35% ASTM E595
Thermal conductivity 1.5 W/m-K ASTM D5470



Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)

Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.



Custom Size Photovoltaic Thermal Pad 1-15W 0.5mm~5.0mm Silicone Themals Conductive Pads For Led Laptop GPU Ssd Cooling 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Company profile



With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.



Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL
