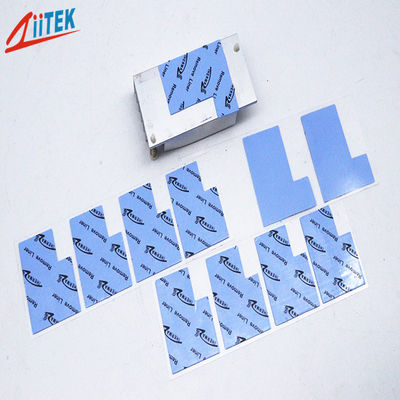

Economical Soft and Compressible Blue Thermal Silicone Pad for High Conductive Gap Filler Applications

Economical Soft and Compressible Blue Thermal Silicone Pad for High Conductive Gap Filler Applications

Gambar besar :  Economical Soft and Compressible Blue Thermal Silicone Pad for High Conductive Gap Filler Applications

Detail produk:
Tempat asal: CINA
Nama merek: ZIITEK
Sertifikasi: UL and RoHs
Nomor model: Seri TIF100-05ES
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1000 pcs
Harga: Dapat dinegosiasikan
Kemasan rincian: 1000pcs/tas
Waktu pengiriman: 3-5 hari kerja
Menyediakan kemampuan: 100000pcs/hari
Detil Deskripsi produk
Nama Produk: Bantalan Silikon Termal 1,5W Ekonomis Bantalan Silikon Pengisi Celah Konduktif Termal Bantalan Terma Kekerasan: 12±5 Pantai 00
Mencicipi: Sampel gratis Ketebalan: 0,020 "(0,5mm) ~ 0,200" (5.0mm)
Kata kunci: Silicone Thermal Pad Konduktivitas termal: 1,5W/mK
Suhu penggunaan terus menerus: -45 hingga 200℃ Warna: Biru
Aplikasi: Modul Memori, Perangkat penyimpanan massal, dll.
Menyoroti:

1.5W thermal silicone pad

,

thermal conductive gap filler

,

high conductive silicone thermal pad

Economical 1.5W Thermal Silicone Pad Thermal Conductive Gap Filler Silicone Pad High Conductive Silicone Thermal Pad



The TIF®100-05ES Series is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy.This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.


Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Moldability for complex parts
> Outstanding thermal performance
> High tack surface reduces contact resistance


Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware

> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure



Typical Properties of TIF®100-05ES Series
Property Value Test method
Color Blue ******
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range 0.020"(0.5mm)~0.200"(0.50mm) ASTM D374
Specific Gravity 2.0g/cc ASTM D297
Hardness 12±5 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage > 5500 VAC ASTM D149
Dielectric Constant 4.5 MHz ASTM D150
Volume Resistivity 1.0 X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Outgassing(TML) 0.35% ASTM E595
Thermal conductivity 1.5 W/m-K ASTM D5470



Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)

Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.

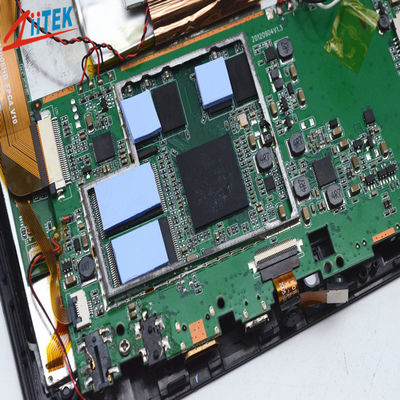

Economical Soft and Compressible Blue Thermal Silicone Pad for High Conductive Gap Filler Applications 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Company profile



With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.



Factory Size:8000~10,000 square meters

Factory Country/Region:No.12, Xiju Road, Hengli Township, Dongguan City, Guangdong Province, P.R.China

Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples



After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.



Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL



Independent R&D team
