High-Strength High-Temperature Resistant Thermal Silicon Insulator Pad For Battery

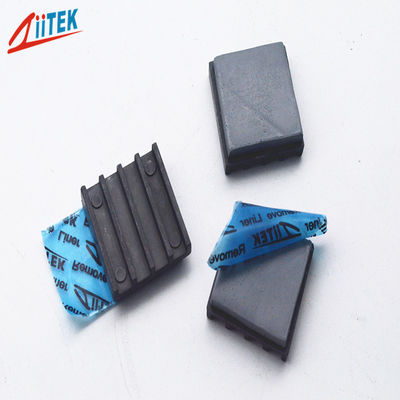

Gambar besar : High-Strength High-Temperature Resistant Thermal Silicon Insulator Pad For Battery

Detail produk:

Tempat asal:	CINA
Nama merek:	ZIITEK
Sertifikasi:	UL and RoHs
Nomor model:	TIF100-02E

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1000 pcs
Harga:	Dapat dinegosiasikan
Kemasan rincian:	1000pcs/tas
Waktu pengiriman:	3-5 hari kerja
Menyediakan kemampuan:	100000pcs/hari

Kontak

Detil Deskripsi produk

Nama Produk:	Insulator Insulator Tahan Tinggi Tinggi Kekuatan Tinggi Pad Insulator Silicon untuk Baterai untuk Ba	Kata kunci:	Pad Insulator Silikon Termal
Konduktivitas termal:	1,5W/mK	Suhu penggunaan terus menerus:	-45 hingga 200℃
Ketebalan:	0,020 "(0,5mm) ~ 0,200" (5.0mm)	Warna:	Abu-abu
Aplikasi:	Baterai	Kekerasan:	35 pantai 00

High-Strength High-Temperature Resistant Thermal Silicon Insulator Pad For Battery

The TIF^®100-02E is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

Features

> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Broad range of hardnesses available
> Moldability for complex parts
> Outstanding thermal performance

Applications

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware

> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

Typical Properties of TIF^®100-02E Series
Property	Value	Test method
Color	Gray	******
Construction &Compostion	Ceramic filled silicone elastomer	******
Thickness range	0.020"(0.5mm)~0.200"(0.50mm)	ASTM D374
Specific Gravity	2.3g/cc	ASTM D297
Hardness	35 Shore 00	ASTM 2240
Continuos Use Temp	-45 to 200℃	******
Dielectric Breakdown Voltage	> 5500 VAC	ASTM D149
Dielectric Constant	4.7 MHz	ASTM D150
Volume Resistivity	1.0 X10¹² Ohm-meter	ASTM D257
Flame rating	94 V0	UL E331100
Thermal conductivity	1.5 W/m-K	ASTM D5470

Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)

Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
