OEM Customized Size Thermal Conductive Pad Thermal Conductive Silicon Pad

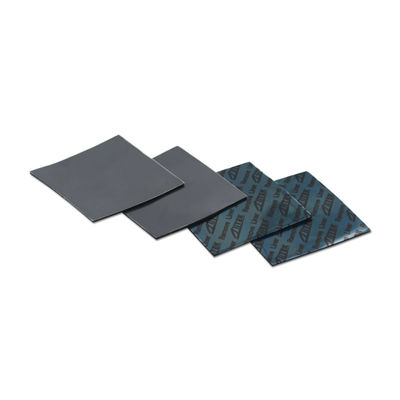

Gambar besar : OEM Customized Size Thermal Conductive Pad Thermal Conductive Silicon Pad

Detail produk:

Tempat asal:	CINA
Nama merek:	ZIITEK
Sertifikasi:	UL and RoHs
Nomor model:	TIF100-01E

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1000 pcs
Harga:	Dapat dinegosiasikan
Kemasan rincian:	1000pcs/tas
Waktu pengiriman:	3-5 hari kerja
Menyediakan kemampuan:	100000pcs/hari

Kontak

Detil Deskripsi produk

Nama Produk:	Ukuran OEM Kustomisasi Pad Konduktif Termal Termal Konduktif Silicon Pad	Kata kunci:	Bantalan silikon konduktif termal
Konduktivitas termal:	1,5W/mK	Aplikasi:	Lampu LED dan elektronik yang tepat
Kekerasan:	35 pantai 00	Suhu penggunaan terus menerus:	-45 hingga 200℃
Warna:	Hitam	Ketebalan:	0,020 "(0,5mm) ~ 0,200" (5.0mm)

OEM Customized Size Thermal Conductive Pad Thermal Conductive Silicon Pad

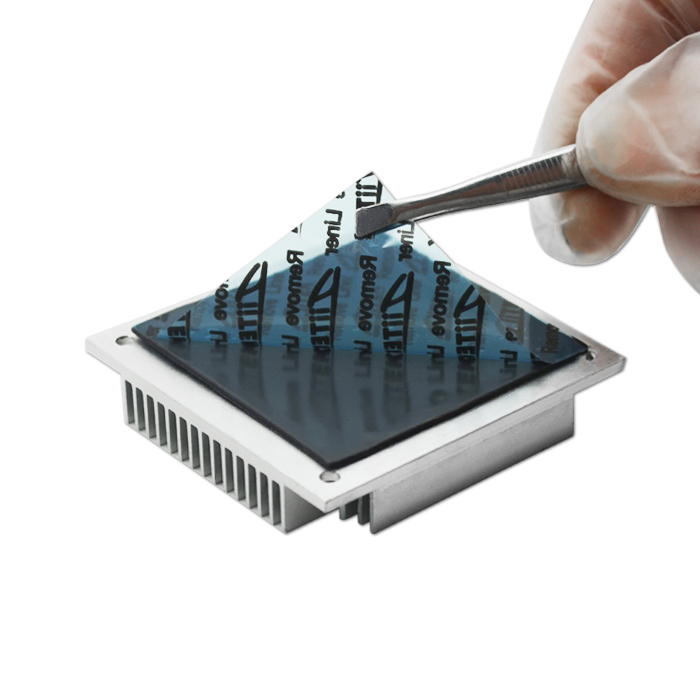

The TIF^®100-01E is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

Features

> Good thermal conductive: 1.5W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized

Applications

> Cpu heat sinking
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

> CPU
> Display card
> Mainboard/mother board

Typical Properties of TIF^®100-01E Series
Property	Value	Test method
Color	Black	******
Construction &Compostion	Ceramic filled silicone elastomer	******
Thickness range	0.020"(0.5mm)~0.200"(5.0mm)	ASTM D374
Specific Gravity	2.3 g/cc	ASTM D297
Hardness	35 Shore 00	ASTM 2240
Continuos Use Temp	-45 to 200℃	******
Dielectric Breakdown Voltage	> 5500 VAC	ASTM D149
Dielectric Constant	4.7 MHz	ASTM D150
Volume Resistivity	1.0 X10¹² Ohm-meter	ASTM D257
Flame rating	94 V0	UL E331100
Outgassing(TML)	0.35%	ASTM E595
Thermal conductivity	1.5 W/m-K	ASTM D5470

Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)

Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company profile

With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials.

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract.

5.Free sample offer.

6.Quality assurance contract.
