RoHS Silicone Thermal Conductive Pad GPU Thermal Pads Thermal Gap Pad For Heat Sink 5.0W/MK

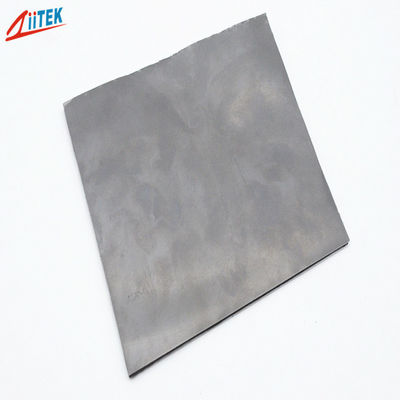

Gambar besar : RoHS Silicone Thermal Conductive Pad GPU Thermal Pads Thermal Gap Pad For Heat Sink 5.0W/MK

Detail produk:

Tempat asal:	Cina
Nama merek:	ZIITEK
Sertifikasi:	UL and RoHs
Nomor model:	TIF800ES

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1000 pcs
Harga:	Dapat dinegosiasikan
Kemasan rincian:	1000pcs/tas
Waktu pengiriman:	3-5 hari kerja
Menyediakan kemampuan:	10000/hari

Kontak

Detil Deskripsi produk

Nama Produk:	ROHS Silicone Thermal Conductive Pad GPU Termal Pads Termal Gap Pad untuk Panas Tunas 5.0W/MK	Ketebalan:	0,02 ~ 0,2 inci （0,50 ~ 5.0mm）
Aplikasi:	Struktur disipasi panas untuk radiator	Tegangan kerusakan:	≥5500 VAC
Konstanta dielektrik:	5,5 MHz	Konstruksi & Komposisi:	Elastomer silikon yang diisi keramik
Kata kunci:	Bantalan termal	Warna:	Abu-abu
Kekerasan:	12 pantai 00

RoHS Silicone Thermal Conductive Pad GPU Thermal Pads Thermal Gap Pad For Heat Sink 5.0W/MK

The TIF^®800ES is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

Features:

> Good thermal conductive:5.0W/mK

> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications

> High compliance adapts to various pressure application environments
> Available in different thickness options

Applications:

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

> Telecommunication equipment
> Automotive electronics
> Battery packs for electric vehicles
> LED TV and lamps

Typical Properties of TIF^®800ES Series
Color	Gray	Visual
Construction &Compostion	Ceramic filled silicone elastomer	******
Thickness	0.020"(0.5mm)~0.200"(5.0MM)	ASTM D374
Specific Gravity	3.3g/cc	ASTM D792
Hardness	12 Shore 00	ASTM 2240
Operating Temp	-40 to 200℃	******
Dielectric Breakdown Voltage(V/mm)	≥5500 VAC	ASTM D149
Dielectric Constant @1MHz	5.5 MHz	ASTM D150
Volume Resistivity	≥1.0x10¹² Ohm-meter	ASTM D257
Flame rating	94 -V0	UL E331100
Thermal conductivity	5.0 W/m-K	ASTM D5470

Products specificatrion

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm) with increments of 0.01 inch (0.25 mm).

Product Sizes: 8" x 16"(203mm x406mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided / Double-sided adhesive).
The TIF series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
